Molded Case Circuit Breakers-EX9M Series
Vendor: Vendor:
NOARK
Pricing available upon request. Please contact us for details.

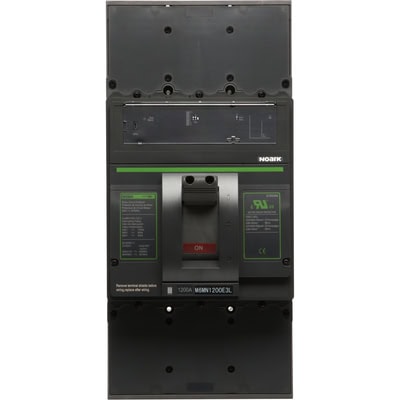

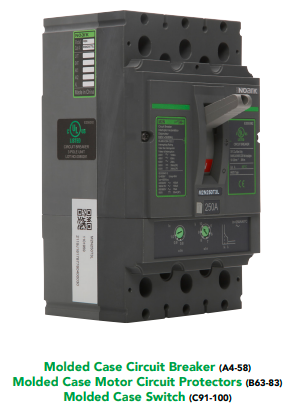

Molded Case Circuit Breakers-EX9M Series
UL489/CSA C22.2 No.5/IEC60947-2
⚫ A complete range of MCCB in six frame sizes Ex9M1-M6: 15A to 1200A;
⚫ Each frame size offers a range of interrupting ratings up to 100kA at 480Vac and voltage ratings up to 600Vac and 600Vdc and has fixed and adjustable trip unit settings.

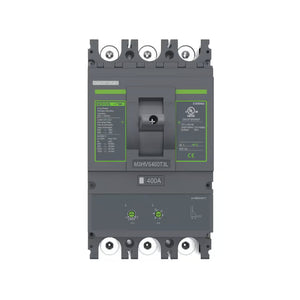

⚫ Ex9M2HV/3HV: Up to 50KA at 800Vac(60A-400A)
⚫ 3 Cycle Short-Time Withstand
⚫ Fixed Mount
⚫ Manual Toggle Operation
⚫ Thermal/Mag or Electronic

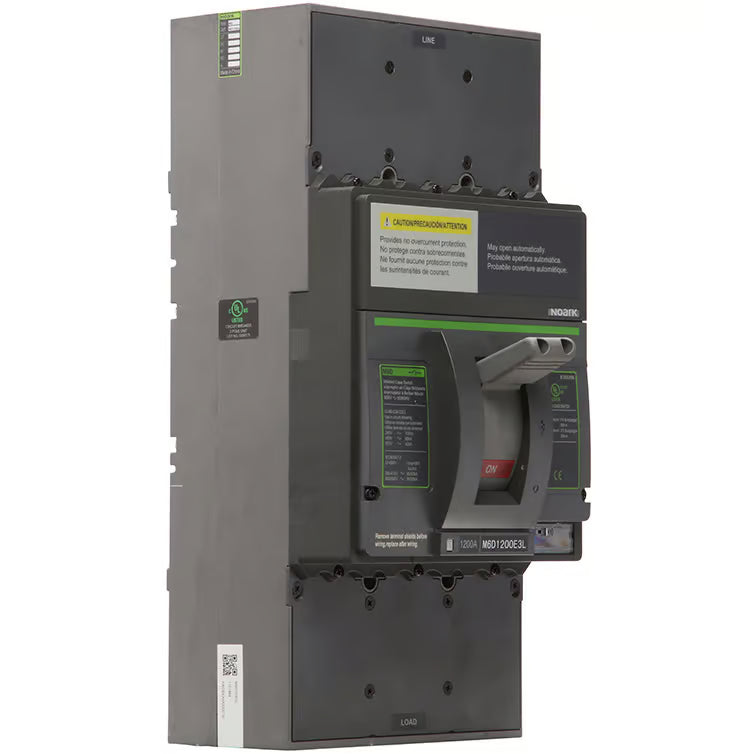

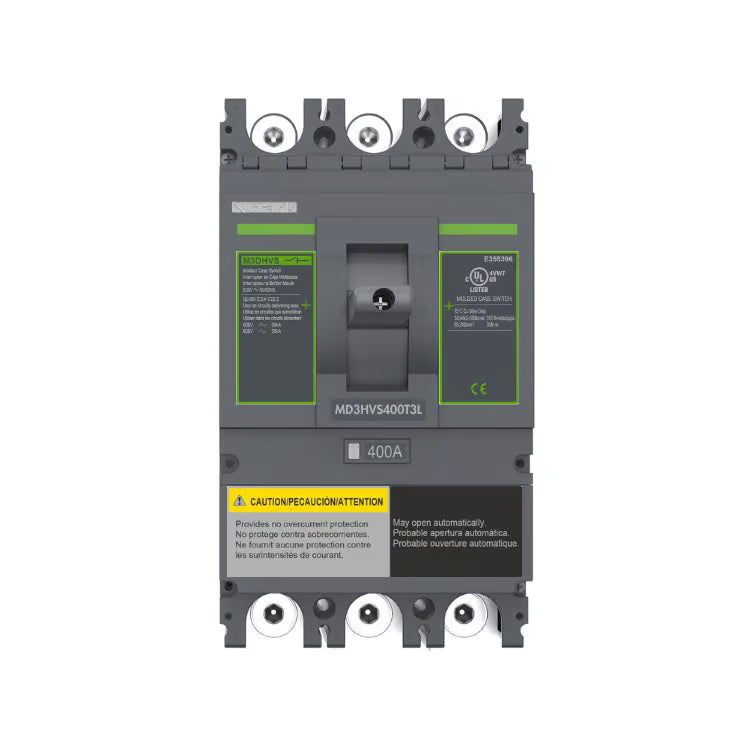

⚫ Series M1D to M6D, Molded Case Switches 15A1200A
⚫ Patented, double-break arc extinguishing design provides high breaking capacity
⚫ Bearing-Type spindle reduces the handle force required to operate the breaker.
⚫ Also Available UL489:
-Molded Case Switches

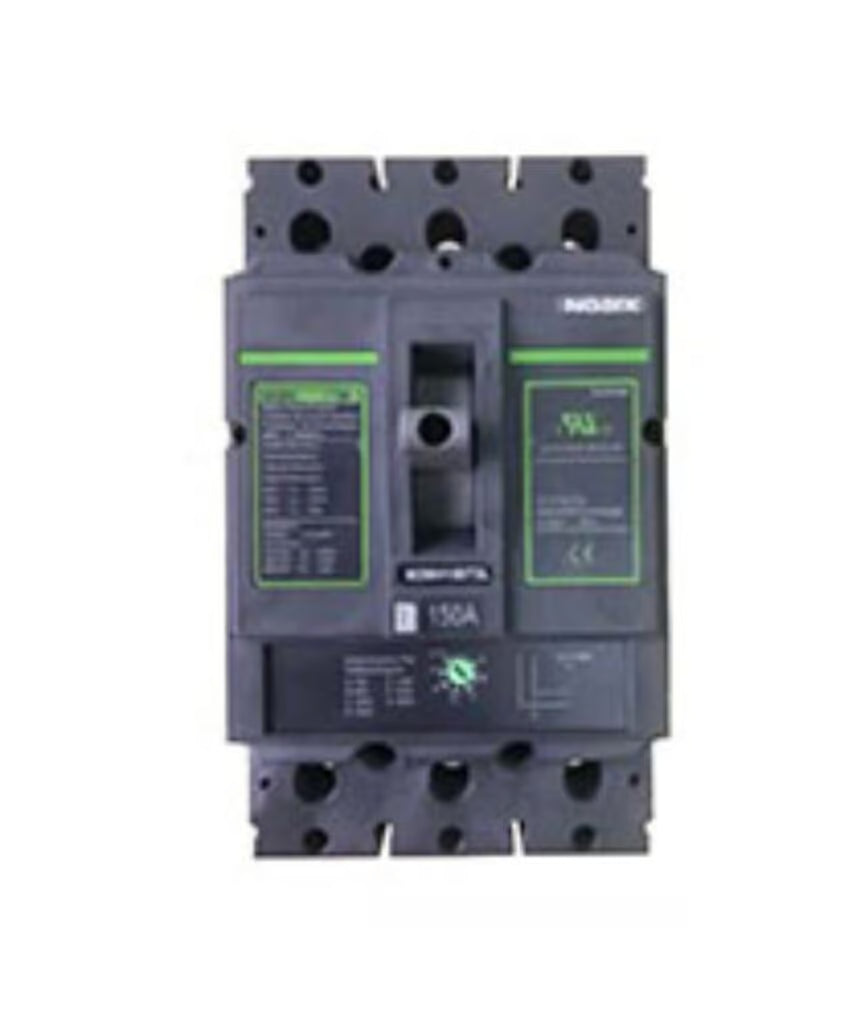

-Molded Case Circuit Protectors
-Molded Case Switches
-Molded Case Circuit Protectors
